Raise the cargo floor of your Toyota Corolla Cross Hybrid (CCH) AWD to be level with the folded rear seats with this cargo riser that compliments the spare tire upgrade.

Open to door to more cargo area use cases such as overlanding and camping by allowing objects to be laid flat between the folded rear seats and cargo area.

My 1.5 inch (38 mm) high cargo riser design is downloadable for free on MakerWorld. If the posted model is useful, purchasing the Digital Kit to show your support is appreciated.

Previous Spare Tire Upgrade Kit customers get a $200 discount on the Cargo Riser - Physical Kit upon request

Important: Read Includes, Notes, and Measurements sections before ordering.

This cargo riser provides a stable flat surface for the cargo floor after adding the spare tire upgrade.

• Raised edges and positioning cutout prevent the cargo floor from shifting off the riser.

• Modular and easy to assemble with dowel joints and hand tools.

• Hole in the center is sized to accommodate most spare tires.

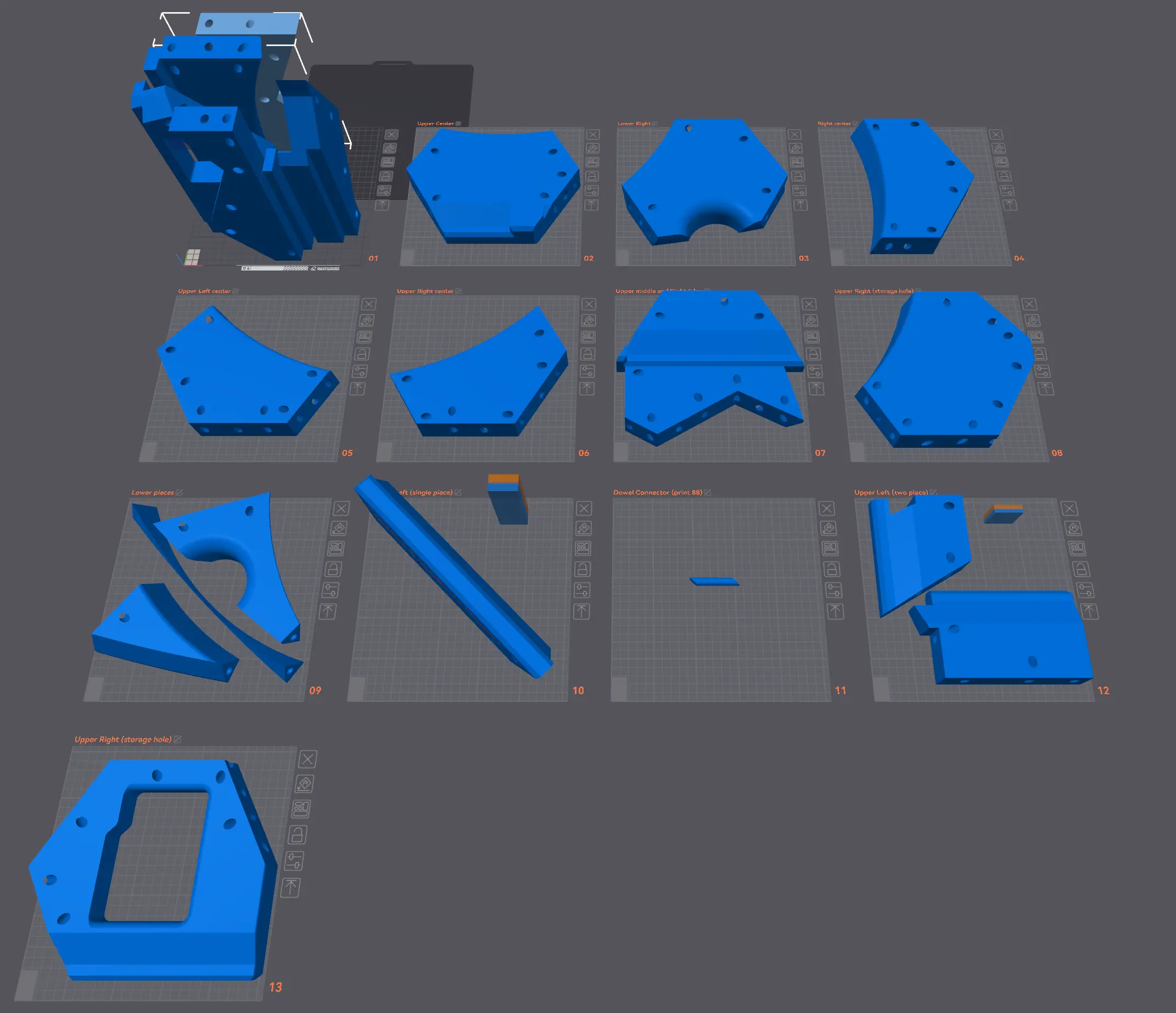

• 3D model files available for personal use and creating on your own 3D printer or CNC machine (Recommended build volume: 256x256x256mm). Customizable options for 3D models:

  • Riser height (mm)
  • Spare tire hole (Yes/No)
  • Precut with dowel joints (Yes/No)

• The kit will be made in random colors. Specific colors are available upon request.

• 🇺🇸 Designed and made in the USA.

Read more about the Cargo Riser, Spare Tire Upgrade, and Toyota Corolla Cross Hybrid Spare Tires

🧰 Includes

• Digital Kit (3MF file)
  • 1 piece cargo riser or 19 piece cargo riser
  • 10mm dowels
  • Dowel tapping adapter

OR

• Physical Cargo Riser Kit (PETG material)
  • 19 piece cargo riser
  • 88x 10mm dowel
  • Dowel tapping adapter

⚠️ Notes

This kit does NOT include a Spare Tire Mount Upgrade Kit, spare wheel, or jack. For information on the Spare Tire Mount Upgrade Kit, getting a compatible spare wheel and jack, see this page.

By ordering, you have read and agree to the Policy.

📒 Assembly Directions

1. Watch this video.

2. Wear eye and hand protection.

3. Arrange the riser pieces as shown above.

4. Insert the dowel into the hole so that the flat dowel end faces UP.

5. Place the dowel angled tapping adapter onto the end of the dowel and tap it until the tapping adapter almost touches the riser.

6. Remove the tapping adapter from the dowel.

7. Drive the dowel into the riser until only 1-2 mm of the dowel protrudes from the riser.

8. Use a flat tapping tool to push the dowel until it is flush against the top surface of the riser.

9. Repeat for all dowels.

🚘 Compatibility

Toyota Corolla Cross Hybrid AWD (1st gen, 2023+)

There may be variation in fitment between individual vehicles due to the physical production process and stamped metal parts. You may need to sand parts of this kit to better fit your vehicle.

📦 Shipping

Shipping is available within the USA. Please contact [email protected] for international sales.

Lead time is ~1 month. This part is made-to-order.

🔧 Order Measurements

• Rise Height (mm) - The height to elevate the stock cargo deck surface.

  1. Lay a flat ruler across the top of your mounted spare wheel so that it is flat on the highest top surface of the wheel (this may be the rim or tire). The ruler should be long enough that it is hanging over the left or right plastic cargo deck piece.
  2. Use another ruler to measure the Rise Height as the greatest vertical distance between the large top surface of the cargo deck piece and the first ruler. The large top surface is NOT the raised edges on the far left and right of the cargo deck pieces.
     • Physical Kit only - 💲 Rise Heights above 38 mm (1.5 in) require an additional Cargo Riser addon item on the purchase page for every extra 12.7mm in Rise Height.

• Spare tire hole (Yes/No) - Digital Kit only - Should the riser have a hole in the center for the spare tire? This should be no if you do not plan to add a spare tire and only want to elevate the cargo floor height.

• Precut with dowel joints (Yes/No) - Digital Kit only - Should the riser be precut with dowel joints or one whole object?

🔏 Licensing

The digital model for this kit is sold under a personal use license only. It is prohibited to distribute the digital file to others or sell physical products derived from the model.

Please purchase a commercial license as one of my Printables Club tiers if you intend to sell physical versions of this product.
